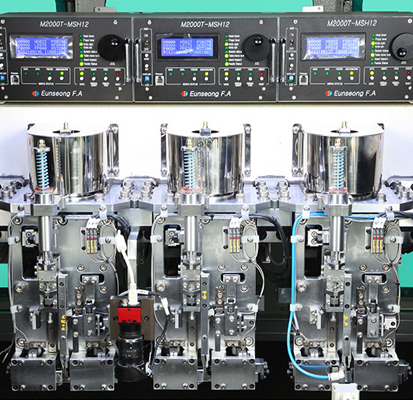

Terminal Inserter Machine

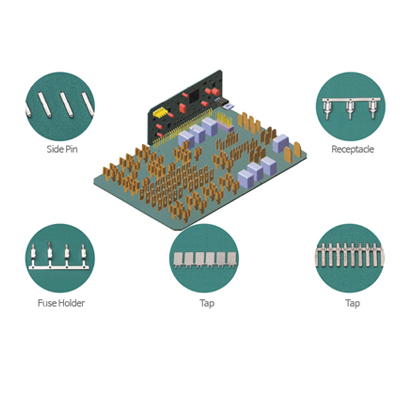

Developed to insert Terminal and Pin. Easy to program inserter with high speed insertion rate. Featuring table turn function. Contact us today to get your SMT inserter quote!
Features
- PCB Size: Min. 80 x 50 / Max. 330 x 250mm
- Insertion Speed: 0.23 sec. ~ 0.65 / Point
- Insertion Head Applicable: 3 Type Head
- Feeding System: Reel Feeding (Tip / Shoulder carry)
- Weight: Max. 1,500kg
- Utility: Power AC 220V 1∅, 4KW / Air 5~6kgf / cm²
- M/C Dimension (L x W x H): 1910 x 1408 x 1562mm
- Control: PC, motion controller coordinates calibration by Vision System
- Noise: 65~70db (Depending on insertion speed)
