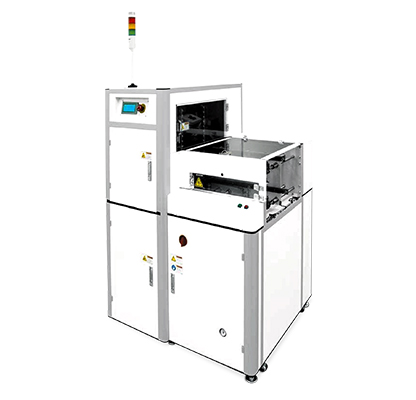

SPI / AOI NG Buffer
This unit is located after SPI/AOI process to store NG PCB in the Rack while transferring good PCB's to the next machine in the FIFO or LIFO way.
Features
- SMEMA Interface
- Touch Screen
- PCB Anti-touch operation – No Stress on PCB (Operated by Special Magnetic Roller)
- Output Conveyor Two-way(upper&lower conveyor) type : upper conveyor for NG PCB
- PCB loading Q’ty : 10 pcs ( Pitch : 31mm )
- After inspection of NG PCB, the Operator can change it to Good PCB
- RS232C Communication with SPI/AOI
- PCB transfer in FIFO / LIFO available
- ESD Cover at Rack part
- Buzzer, LED tower light
Options
- Auto width adjustment
- 15 or 20 PCB loading capacity
- ESD cover for buffer conveyor
Media
Conveyor Models
KGNB-700S
Specifications
- Max. PCB (L * W): 330 x 250
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 800 x 750 x 1500
- Power: 700 VA
- Air: 4~6 kgf / cm2
- Weight: 440 lbs
KBBC-700L
Specifications
- Max. PCB (L * W): 530 x 380
- Min. PCB (L * W): 50 x 50
- Dimension (L * W): 1220 x 880 x 1500
- Power: 700 VA
- Air: 4~6 kgf / cm2
- Weight: 529 lbs
KBBC-700XX
Specifications
- Max. PCB (L * W): 610 x 460
- Min. PCB (L * W): 50 x 50
- Dimension (L * W): 1220 x 1100 x 1500
- Power: 700 VA
- Air: 4~6 kgf / cm2
- Weight: 573 lbs
KBBC-700Y
Specifications
- Max. PCB (L * W): 440 x 330
- Min. PCB (L * W): 50 x 50
- Dimension (L * W): 1060 x 830 x 1500
- Power: 450 VA
- Air: 4~6 kgf / cm2
- Weight: 507 lbs
KBBC-700X
Specifications
- Max. PCB (L * W): 530 x 460
- Min. PCB (L * W): 50 x 50
- Dimension (L * W): 1220 x 1100 x 1500
- Power: 700 VA
- Air: 4~6 kgf / cm2
- Weight: 551 lbs
