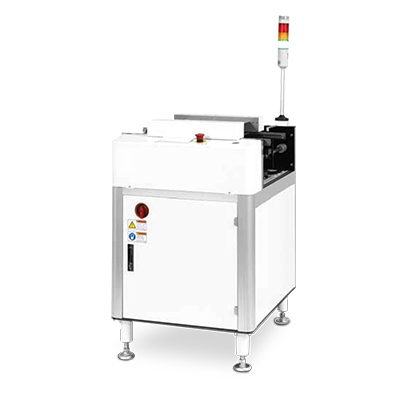

Single NG Ejecting Conveyor

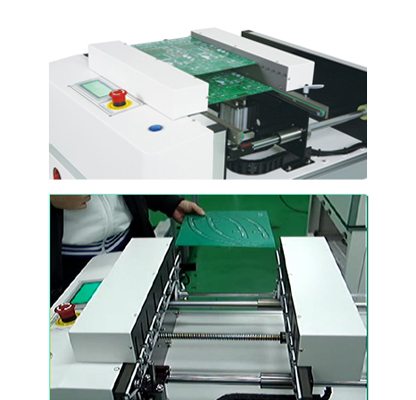

NG board can be ejected upward for visual inspection without stopping good PCB flow.
Categories Automation, PCB Handling Conveyors
Tag PCB Handling Conveyors
Features
- Magazine Adjustment range : 50mm ~ 250mm
- Perfect fixing with left/right 3 Magazines
- Precise control by 2 axis servo motor
- Precise control by 2 axis servo motor
- Wrench exchange type for assembly/disassembly of blot
- Touch Panel
Options
- Touch Screen
- Dust Cover
- Auto Width Adjust
Media
Conveyor Models
KNC-600S
Specifications
- Max. PCB (L * W): 330 x 250
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 500 x 703 x 1040
- Power: 450 VA
- Air: 4~6 kgf / cm2
- Weight: 286 lbs
KBBC-600L
Specifications
- Max. PCB (L * W): 530 x 380
- Min. PCB (L * W): 50 x 50
- Dimension (L * W): 700 x 830 x 1040
- Power: 450 VA
- Air: 4~6 kgf / cm2
- Weight: 374 lbs
KBBC-600XX
Specifications
- Max. PCB (L * W): 610 x 460
- Min. PCB (L * W): 50 x 50
- Dimension (L * W): 800 x 920 x 1040
- Power: 450 VA
- Air: 4~6 kgf / cm2
- Weight: 440 lbs
KBBC-600Y
Specifications
- Max. PCB (L * W): 440 x 330
- Min. PCB (L * W): 50 x 50
- Dimension (L * W): 630 x 790 x 1040
- Power: 450 VA
- Air: 4~6 kgf / cm2
- Weight: 330 lbs
KBBC-600X
Specifications
- Max. PCB (L * W): 530 x 460
- Min. PCB (L * W): 50 x 50
- Dimension (L * W): 700 x 920 x 1040
- Power: 450 VA
- Air: 4~6 kgf / cm2
- Weight: 396 lbs
