Shuttle Traverse Conveyor
This unit used to load both bare board and the PCB from Magazine to next process in the production line.
Categories Automation, PCB Handling Conveyors
Tag PCB Handling Conveyors
Features
- SMEMA Interface
- Stable design with double plate structure
- ESD Cover safe from dust
- Customized rail length and sliding stroke available
- Auto/pass mode available
- Buzzer, LED tower light
Options
- Touch screen
- Auto width adjustment
- Speed Control
- Aux. buffer conveyor
- Enable 1 in 2 out
- 2 in 1 out and 2 in 2 out
- Feasible a custom-travel stroke
Media
Conveyor Models

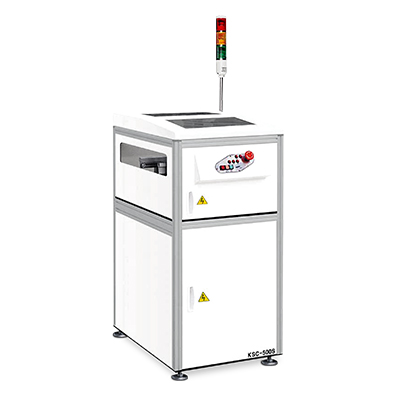

KSC-500S
Specifications
- Max. PCB (L * W): 330 x 250
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 500 x 720 x 1050
- Power: 100 VA
- Air: 4~6 kgf / cm2
- Weight: 275 lbs
KSC-500L
Specifications
- Max. PCB (L * W): 530 x 380
- Min. PCB (L * W): 50 x 50
- Dimension (L * W): 710 x 980 x 1050
- Power: 100 VA
- Air: 4~6 kgf / cm2
- Weight: 374 lbs
KSC-500XX
Specifications
- Max. PCB (L * W): 610 x 460
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 710 x 1140 x 1050
- Power: 100 VA
- Air: 4~6 kgf / cm2
- Weight: 462 lbs
KSC-500Y
Specifications
- Max. PCB (L * W): 440 x 330
- Min. PCB (L * W): 50 x 50
- Dimension (L * W): 630 x 880 x 1050
- Power: 100 VA
- Air: 4~6 kgf / cm2
- Weight: 330 lbs
KSC-500X
Specifications
- Max. PCB (L * W): 530 x 460
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 710 x 1020 x 1050
- Power: 100 VA
- Air: 4~6 kgf / cm2
- Weight: 418 lbs
