PCB Marking & Depanelizing Machines
With the development of printed circuit boards toward refinement, high density, and high performance, the precise non-contact and non-destructive processing characteristics of lasers have become more and more widely used in the PCB industry.
Features
- Highly efficient laser cutting
- Easy to configure with different types of materials
- Improvement of product quality
- Low cost
- Easy to use
Applications
- PCB
- SMT
- FPC
- Precision Cutting
- Precision Marking
Media

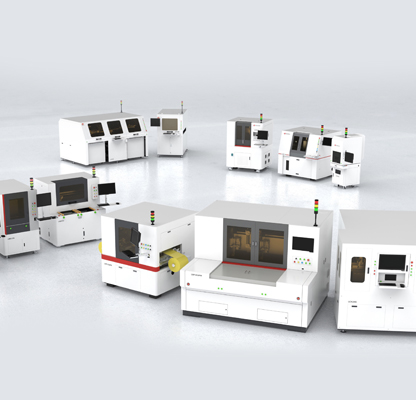

PCB Marking & Depanelizing Lineup

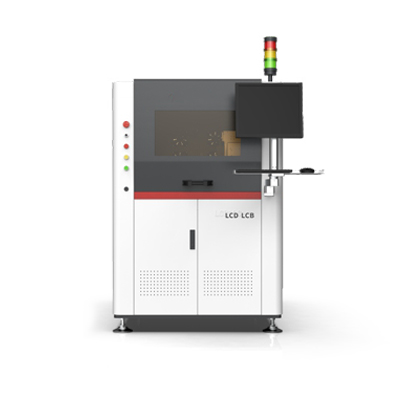

LCD LCB
Single and Double Head Marking Machine
Applicable to SMT production line, offline/online mode can be selected according to needs, automatic laser coding and reading detection can be realized through the precise positioning of equipment automatic transmission system and industrial vision system, and the process control of SMT enterprises in the production process can be realized.
Applicable to SMT production line, offline/online mode can be selected according to needs, automatic laser coding and reading detection can be realized through the precise positioning of equipment automatic transmission system and industrial vision system, and the process control of SMT enterprises in the production process can be realized.
- Great beam quality
- Code reading rate of 99.9%
- Friendly user interface
- Easy to operate
- Automatic track width adjustment
- Compact structure

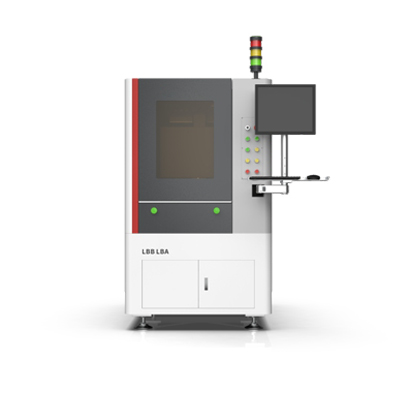

LBB LBA
Offline-Online Cutting Machine
FPC laser cutting machines adopt high-performance cold laser source, perfectly achieving the board shape cutting, contour cutting, drilling and cover film cutting and other ultra-fine processing. The equipment is mainly used in precision cutting and marking for flexible circuit boards, rigid circuit boards, rigid-flexible circuit boards.
FPC laser cutting machines adopt high-performance cold laser source, perfectly achieving the board shape cutting, contour cutting, drilling and cover film cutting and other ultra-fine processing. The equipment is mainly used in precision cutting and marking for flexible circuit boards, rigid circuit boards, rigid-flexible circuit boards.
- Great beam quality
- Cutting vision control system
- High cutting accuracy
- Easy to operate
- Great processing flatness
- Offline / online processing methods

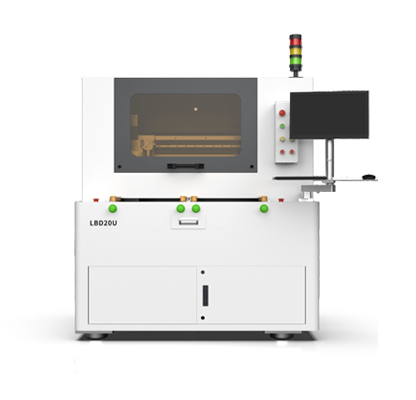

LBD20U
Double Station Cutting Machine
Good beam quality and high quality cutting. Can complete fine processing with a minimum line width of 10um (dependent on material).
Good beam quality and high quality cutting. Can complete fine processing with a minimum line width of 10um (dependent on material).
- Great beam quality
- Cutting vision control system
- High cutting accuracy
- Easy to operate
- Great processing flatness
- Offline / online processing methods

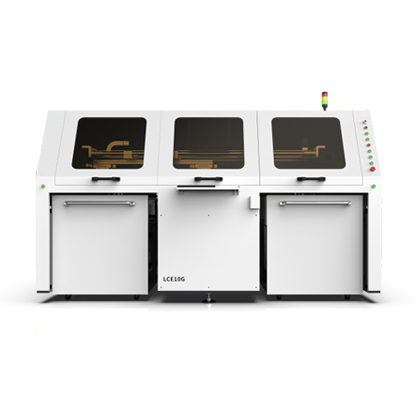

LCE10G
Solder Mask Coding Machine
Can mark barcodes, two-dimensional codes, characters, and graphics with a reading rate of over 99.9%. It can be matched with different lasers and has good compatibility. It is suitable for marking the surface of various inks such as white oil, green oil and black oil on PCB/FPC boards.
Can mark barcodes, two-dimensional codes, characters, and graphics with a reading rate of over 99.9%. It can be matched with different lasers and has good compatibility. It is suitable for marking the surface of various inks such as white oil, green oil and black oil on PCB/FPC boards.
- Mark barcodes, two-dimensional codes, characters, graphics,
- Single-platform and dual-platform configurations
- Self-checking post code-reading

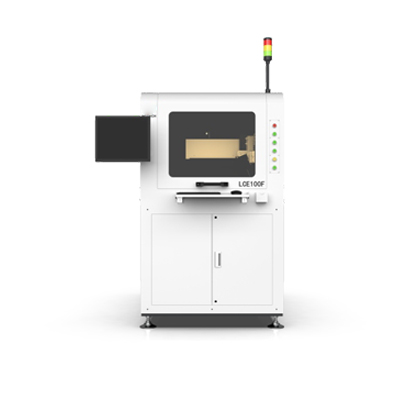

LCE100F
Coated Copper Coding Machine
Provides PCB manufacturers with a complete set of full-process traceability solutions such as code assignment, code reading, and data system to realize the traceability and control of the entire life cycle of PCB boards from raw material, to final product.
Provides PCB manufacturers with a complete set of full-process traceability solutions such as code assignment, code reading, and data system to realize the traceability and control of the entire life cycle of PCB boards from raw material, to final product.
- High efficiency, production capacity of 8pcs / min
- Build large industrial data through platform management system
- Product coverage
- Fast batch delivery

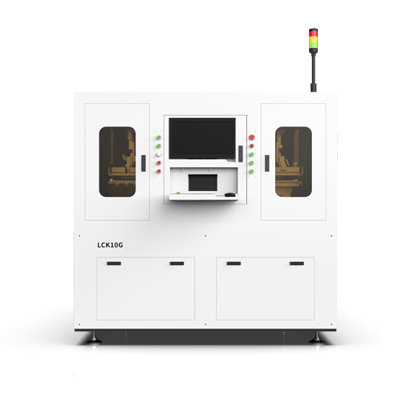

LCK10G
IC Carrier Board Defect Identification Machine
Used for automatic identification and laser marking of scrap units on carrier products , which facilitates efficient and accurate identification of subsequent processes , and improves the product yield and process efficiency of customer factories.
Used for automatic identification and laser marking of scrap units on carrier products , which facilitates efficient and accurate identification of subsequent processes , and improves the product yield and process efficiency of customer factories.
- High speed processing of bad board marks on IC substrate
- No adjustment is required when changing materials
- Energy monitoring system configuration
- Convenient and easy to use
- Automatically identify the front-end process mark , or connect to the customer system to directly obtain the location information of the scrap board for marking

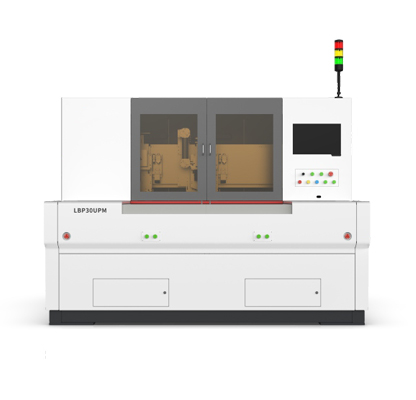

LBP30UPM
Single Platform Picosecond UV Cutting Machine
Applicable to FPC board factories, can choose offline/semi-automatic mode according to customer needs, through manual loading and unloading or automatic loading and unloading of mechanical arms, and precise positioning of industrial actual systems, to achieve covering film (CVL), flexible plate (FPC), soft and hard Combine the cutting and forming of the plate (RF) and the thin multilayer board, open the window, and open the cover to achieve the requirements of no blackening, no carbonized dust, and high precision.
Applicable to FPC board factories, can choose offline/semi-automatic mode according to customer needs, through manual loading and unloading or automatic loading and unloading of mechanical arms, and precise positioning of industrial actual systems, to achieve covering film (CVL), flexible plate (FPC), soft and hard Combine the cutting and forming of the plate (RF) and the thin multilayer board, open the window, and open the cover to achieve the requirements of no blackening, no carbonized dust, and high precision.
- Up to ±20um cutting accuracy
- Built-in laser power detection function
- Automatically identify the barcode of the ID card
- Easy to use

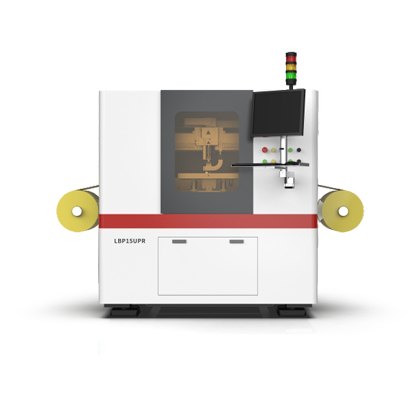

LBP15UPR
Automatic Cover Film Cutting Machine
Capable of two kinds of processing methods that are compatible with online and offline loading and unloading of cover film rolls. The equipment is composed of roll structure, XY linear motor platform, laser and optical path, CCD system, dust collection negative pressure system, etc.
Capable of two kinds of processing methods that are compatible with online and offline loading and unloading of cover film rolls. The equipment is composed of roll structure, XY linear motor platform, laser and optical path, CCD system, dust collection negative pressure system, etc.
- Capable of non-stop production
- Automatic calculation of the number of cut sheets
- Perform CRM system connection
- High-precision gantry double-drive platform

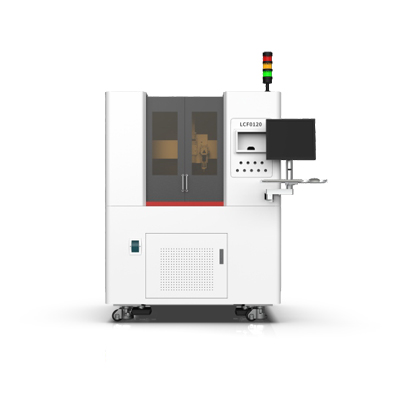

LCF0120
Fiber Cutting Machine
It is suitable for scribing, cutting, and drilling of various thin metal plates and micro-precision metals, mainly used in LED, precision machinery, semiconductor control devices, and 3C parts industries.
It is suitable for scribing, cutting, and drilling of various thin metal plates and micro-precision metals, mainly used in LED, precision machinery, semiconductor control devices, and 3C parts industries.
- Great beam quality
- Professional cutting software, multi-level authority operation, convenient for production management
- Effectively improve production efficiency, running speed can reach 1000mm/s
- High cutting accuracy

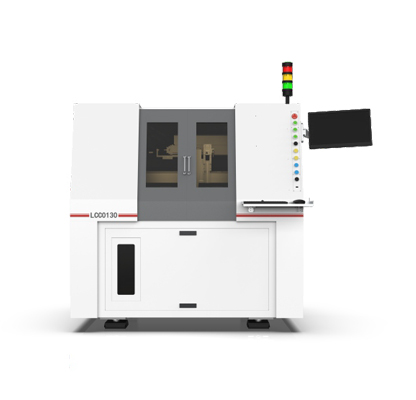

LCC0130
CO2 Cutting Machine
The equipment is suitable for the precision cutting and punching requirements of leather, acrylic sheet, PE material, Pl/PET film, polarizer, explosion-proof film and other industries.
The equipment is suitable for the precision cutting and punching requirements of leather, acrylic sheet, PE material, Pl/PET film, polarizer, explosion-proof film and other industries.
- Running speed can reach 1000mm/s
- Integrally cast with high precision and stability
- Graphics nesting and sharp corner smoothing processing functions
- Professional cutting software, multi-level authority operation

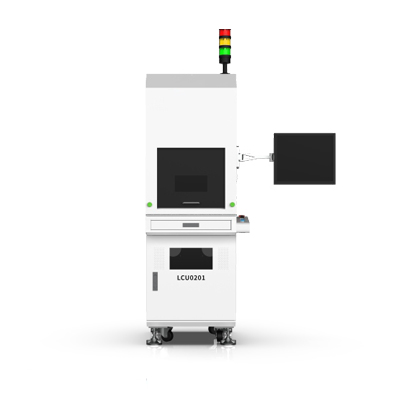

LCU0201
UV Cutting Machine
This equipment is mainly used in leather, film materials, carbon paper and other soft material processing industries.
This equipment is mainly used in leather, film materials, carbon paper and other soft material processing industries.
- Split-In one- style alternatively, easily stringing
- Cutting seam is smooth and flat, and the heat influence is smaller than that of CO2 equipment
- Strong editing ability
- High-precision linear motor platform
- High-speed drilling and cutting
