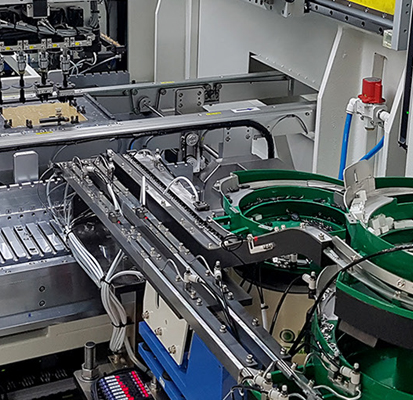

Odd Form Inserter Machine

The Odd Form Inserter is a user-friendly insertion machine capable of high-speed performance, easy programming, and a table turn function. Call us today and get your quote! 619.661.5985.

Features

  • PCB Size: Min. 100 x 80 / Max. 350 x 250mm
  • Insertion Speed: 2 sec. / ea
  • Insertion Head Applicable: 8 Type Head
  • Feeding System: Bowl (Bulk), Tray, Stick, Reel Feeder
  • Weight: Max. 1,500kg
  • Utility: Power AC 220V 1∅, 4KW / Air 5~6kgf / cm²
  • M/C Dimension (L x W x H): 1410 x 2070 x 1570mm
  • Control: PC, motion controller coordinates calibration by Vision System

Media

odd form inserter thumb
Play Video about odd form inserter thumb

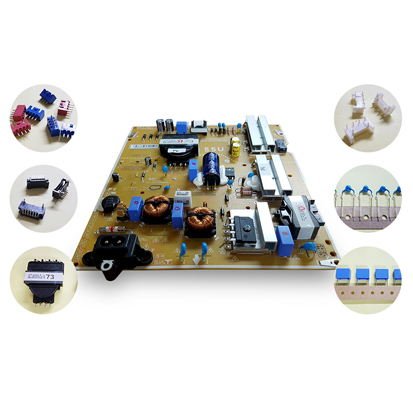

Applicable Parts

Odd Form Components

Connectors

Transformers

  • Transformers
  • Relays
  • Pins
  • Connectors
