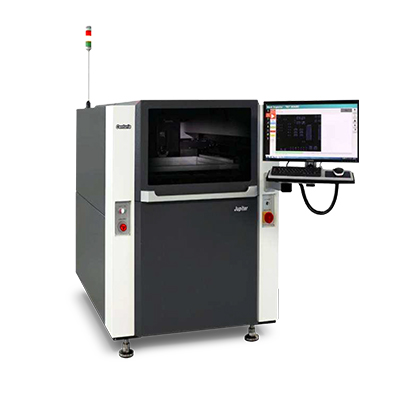

Metal Mask Inspection System

Precise inspection of defects including lack of solder, misregistration, misalignment, and openings. Our Metal Stencil Mask Inspection System gets precise and reliable measurement results by adapting PROTEC’s tension gauges series, namely STG 75M/75D. It’s ability to provide certified test reports is unmatched!

Features

  • Accurate Inspection
  • Data management and editing
  • History management

Specifications

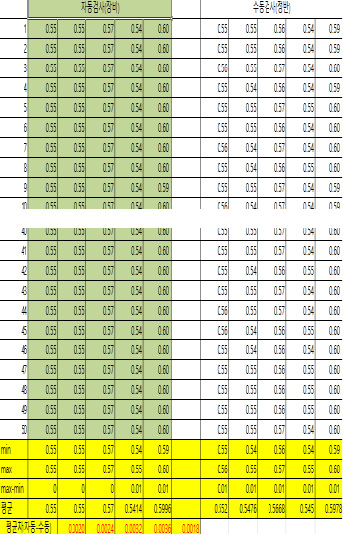

Mask Inspection

Media

Models

Analog Type  |  Display: Metric Scale Only

stg 75m

STG-75M

The STG-75M is an extremely versatile gauge with wide range of measurement scalability. Ideal for high-tension, largescale material with highly accurate results!

Analog Type  |  Display: Metric Scale Only

stg-75d

STG-75D

The STG-75D is an extremely versatile gauge with wide range of measurement scalability. Unlike the STG-75M, it can provide a permanent record of all tension measurements, and various data operations.

More Features

Squeegee Blade Inspection

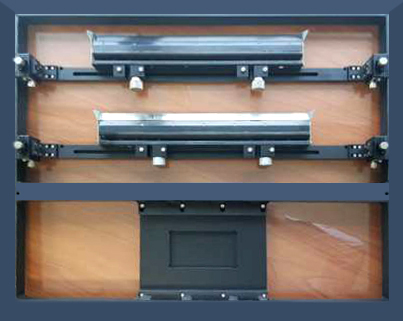

The Metal Stencil Mask Inspection System performs a rigorous inspection of the squeegee blade. It allows the user to manage its data and history.
  • Accurate inspection
  • Data management and editing
  • History management

Gerber


The Metal Stencil Mask Inspection System performs a rigorous inspection of squeegee blade state, allowing the user to manage the data and history.
  • Easy conversion
  • Fast making
  • Effective compatibility
  • Powerful editing

Function

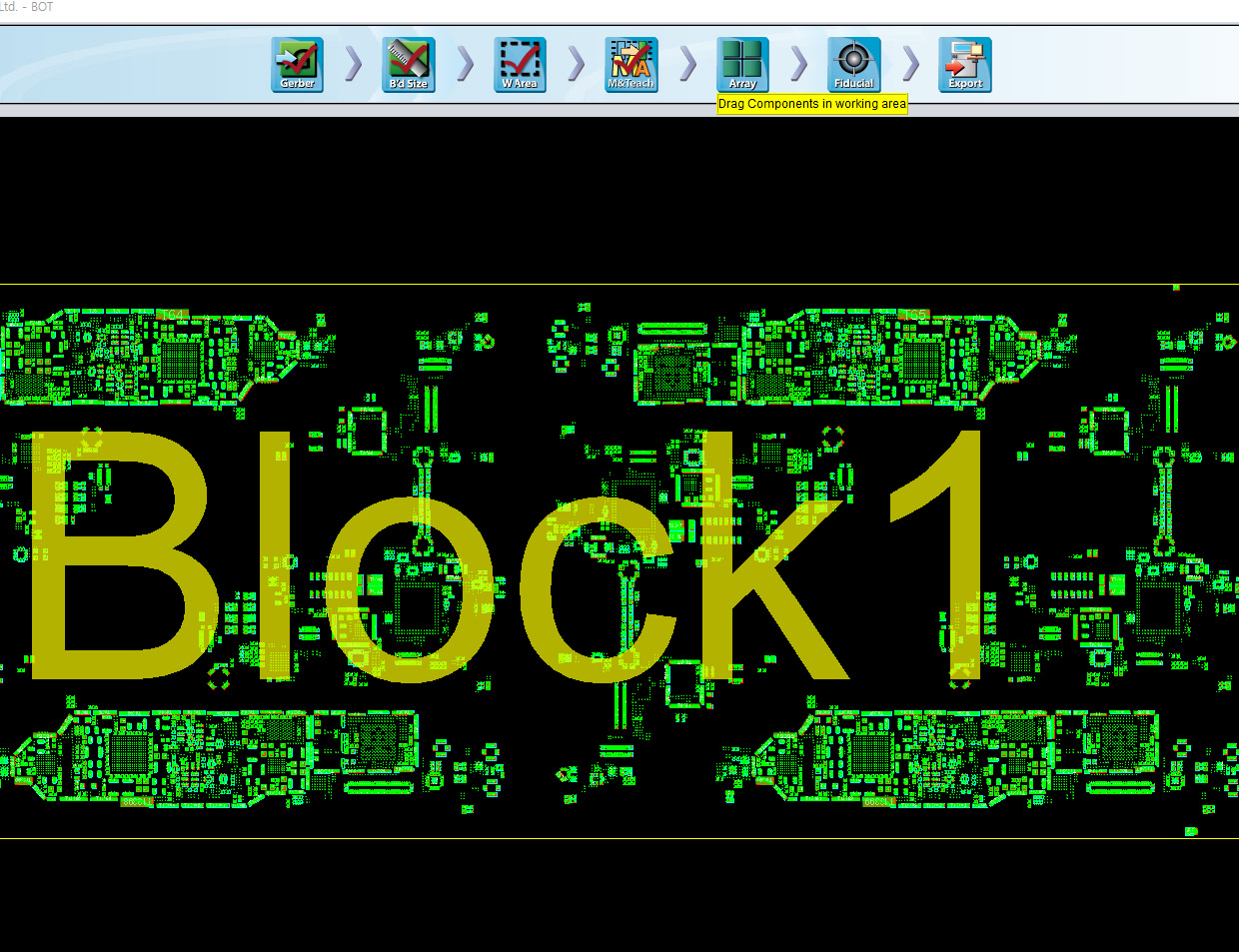

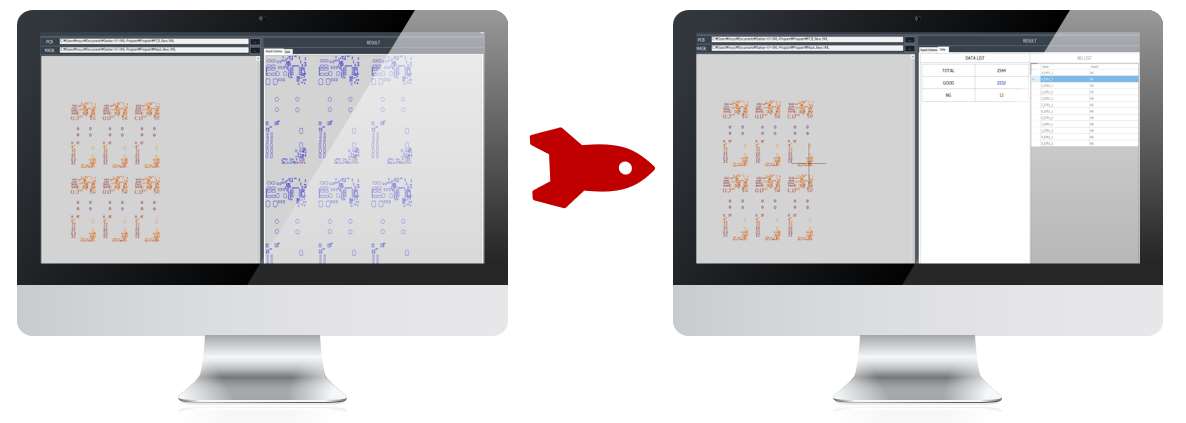

The Metal Stencil Mask Inspection System allows users to compare and check the PCB Gerber data, with the Mask Gerber data.

Pin Hole


The system performs an excellent inspection of the micro pin hole (option), namely the semi-conductor, SATURN.

Management

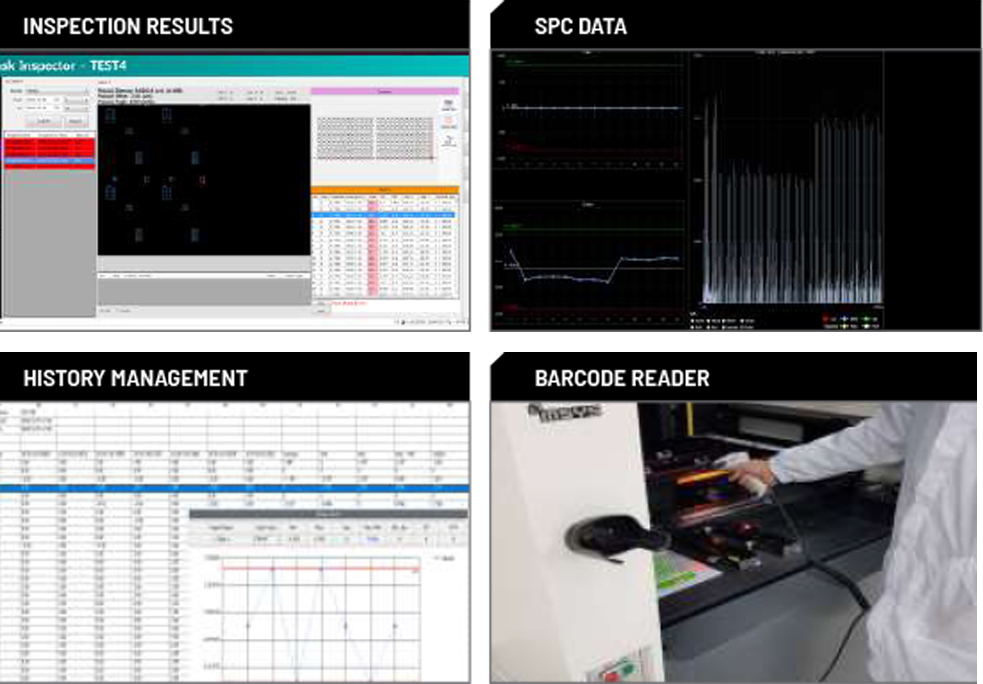

With exceptional performance, this Metal Stencil Mask Inspector manages the history of variable inspection data and SPC function.
  • Inspection result verification
  • SPC data statistics and arrangement
  • History management and MES interface
  • Barcode reader 2D and 3D available

Defects

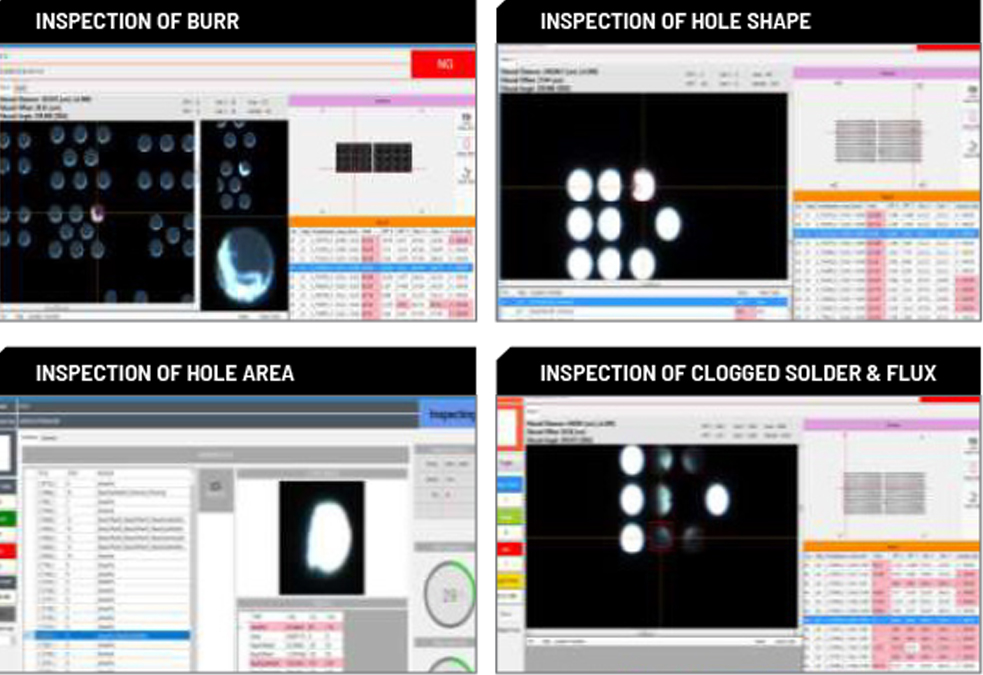

Inspects mask open areas and micro burr around hole. Capable of measuring hole size.
  • Inspection of burr
  • Inspection of hole shape
  • Inspection of hole area
  • Inspection of clogged solder and flux

Structure

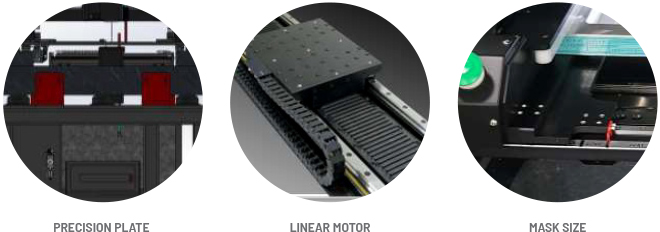

With a strong performing liner motor, and adapting surface plate (stone), the inspection system guarantees highly accurate solutions for variable size masks.
  • Inspection of burr
  • Inspection of hole shape
  • Inspection of hole area
  • Inspection of clogged solder and flux
