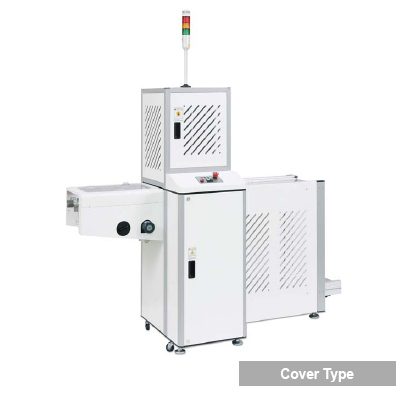

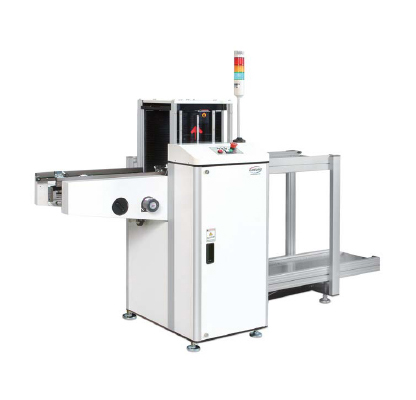

Magazine Unloader
This unit is used to unload the PCB into the Magazine.
Features
- SMEMA Interface
- Stable design
- Perfect fixing with 4 Magazine fixture (upper 2 + lower 2 Magazines)
- Easy operation by user-friendly operation panel
- Decreased noise while Magazine moves up/down
- Buzzer, LED tower light
Options
- Acceptance for 2 different sizes of Magazine
- Space save type(90 degree shape)
- Touch screen
- High speed magazine change-over time
- Cooling Fan
- Auto width adjustment at pusher conveyor
Media
Conveyor Models
KUP-900S
Specifications
- Max. PCB (L * W): 330 x 250
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 1890 x 725 x 1080
- Power: 500 kVA
- Air: 4~6 kgf / cm2
- Weight: 573 lbs
KUP-900L
Specifications
- Max. PCB (L * W): 530 x 380
- Min. PCB (L * W): 50 x 60
- Dimension (L * W): 2650 x 925 x 1180
- Power: 500 kVA
- Air: 4~6 kgf / cm2
- Weight: 661 lbs
KUP-900XX
Specifications
- Max. PCB (L * W): 610 x 460
- Min. PCB (L * W): 50 x 100
- Dimension (L * W): 2905 x 995 x 1180
- Power: 500 kVA
- Air: 4~6 kgf / cm2
- Weight: 749 lbs
KUP-900Y
Specifications
- Max. PCB (L * W): 440 x 330
- Min. PCB (L * W): 50 x 65
- Dimension (L * W): 2345 x 805 x 1080
- Power: 500 kVA
- Air: 4~6 kgf / cm2
- Weight: 628 lbs
KUP-900X
Specifications
- Max. PCB (L * W): 530 x 460
- Min. PCB (L * W): 50 x 100
- Dimension (L * W): 2650 x 995 x 1180
- Power: 500 kVA
- Air: 4~6 kgf / cm2
- Weight: 705 lbs
