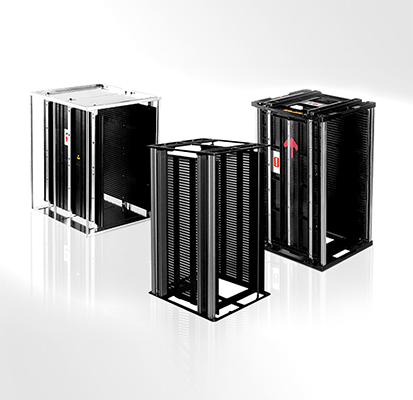

Magazine Racks

Streamline your PCB board handling operations with our top-quality magazine racks. Customizable racks available upon request.

Features

  • Easy storage
  • High PCB capacity
  • Aluminum available
  • Customizable

Magazine Rack Lineup

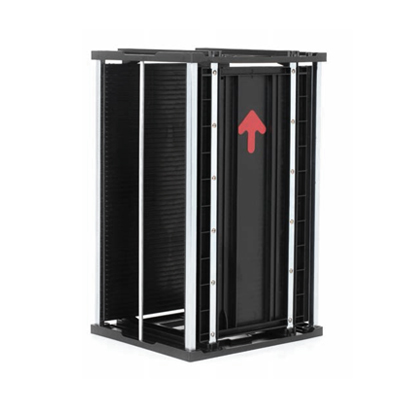

Conductive Rack AMS-091


  • Size (mm): 320(W) x 355(L) x 580(H)
  • PCB MAX (mm): 258(W) x 330(L)
  • PCB MIN (mm): 50(W)
  • Storage slot: 51 PCB pieces
  • Pitch (mm): 10
  • Material: ABS
  • Weight (kg): 4.8

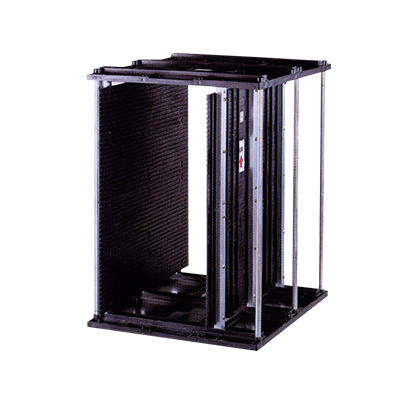

Conductive Rack AMS-093


  • Size (mm): 460(W) x 535(L) x 575(H)
  • PCB MAX (mm): 380(W) x 535(L)
  • PCB MIN (mm): 60(W)
  • Storage slot: 50 PCB pieces
  • Pitch (mm): 10
  • Material: ABS and AL (Top and Bottom cover)
  • Weight (kg): 7

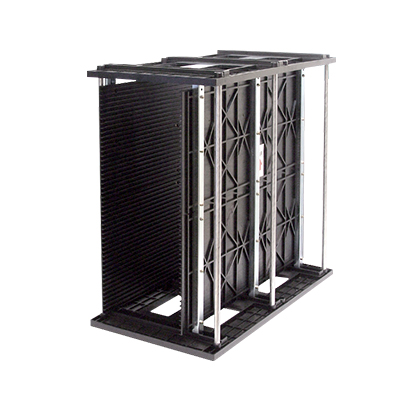

Conductive Rack AMS-096


  • Size (mm): 400(W) x 460(L) x 575(H)
  • PCB MAX (mm): 334(W) x 460(L)
  • PCB MIN (mm): 68(W)
  • Storage slot: 50 PCB pieces
  • Pitch (mm): 10
  • Material: ABS
  • Weight (kg): 7

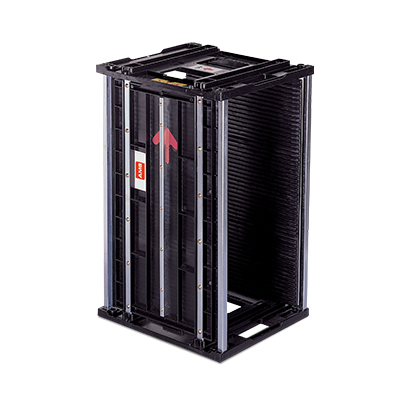

Conductive Rack AMS-097


  • Size (mm): 320(W) x 355(L) x 570(H)
  • PCB MAX (mm): 250(W) x 335(L)
  • PCB MIN (mm): 50(W)
  • Storage slot: 50 PCB pieces
  • Pitch (mm): 10
  • Material: ABS
  • Weight (kg): 6

Conductive Rack AMS-098


  • Size (mm): 320(W) x 355(L) x 570(H)
  • PCB MAX (mm): 250(W) x 335(L)
  • PCB MIN (mm): 50(W)
  • Storage slot: 50 PCB pieces
  • Pitch (mm): 10
  • Material: Aluminum
  • Weight (kg): 6

Conductive Rack AMS-099


  • Size (mm): 530(W) x 535(L) x 575(H)
  • PCB MAX (mm): 236(W) x 600(L)
  • PCB MIN (mm): 60(W)
  • Storage slot: 50 PCB pieces
  • Pitch (mm): 10
  • Material: ABS Conductive
  • Weight (kg): 8.5

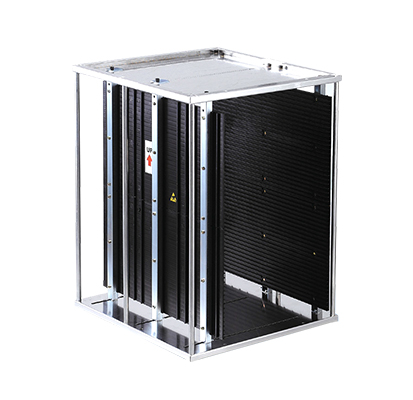

Aluminum Rack AMS-100


  • Size (mm): 530(W) x 535(L) x 575(H)
  • PCB MAX (mm): 450(W) x 600(L)
  • PCB MIN (mm): 150(W)
  • Storage slot: 50 PCB pieces
  • Pitch (mm): 10
  • Material: Aluminum (Top and bottom) ABS (Side)
  • Weight (kg): 8.5

Aluminum Rack AMS-101


  • Size (mm): 530(W) x 620(L) x 575(H)
  • PCB MAX (mm): 450(W) x 600(L)
  • PCB MIN (mm): 150(W)
  • Storage slot: 50 PCB pieces
  • Pitch (mm): 10
  • Material: Aluminum (Top and bottom) ABS (Side)
  • Weight (kg): 8.5

Custom Anti-Electronic Wave Spray


  • Size (mm): Customizable
  • PCB MAX (mm): Customizable
  • PCB MIN (mm): Customizable
  • Storage slot: Customizable
  • Pitch (mm): 10
  • Material: Customizable
  • Weight (kg): Customizable

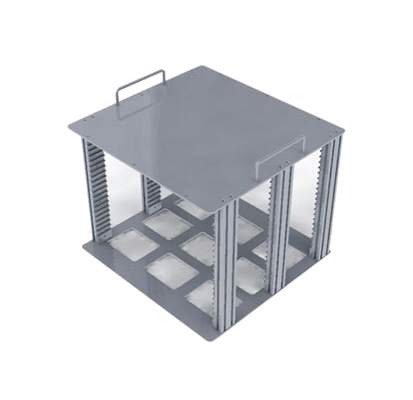

Custom Rack for Touch Screen Glass


  • Size (mm): Customizable
  • PCB MAX (mm): Customizable
  • PCB MIN (mm): Customizable
  • Storage slot: Customizable
  • Pitch (mm): 10
  • Material: Customizable
  • Weight (kg): Customizable

LED Rack AMS-102


Call or email us for details

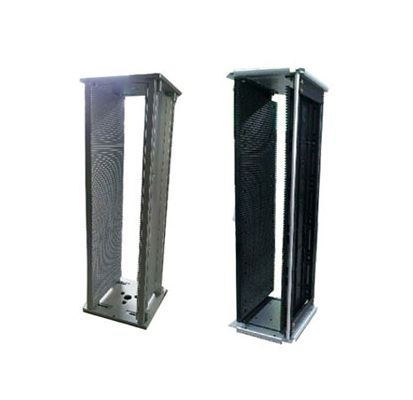

Rack for Mobile Phone Glass


  • Size (mm): 180(W) x 180(L) x 555(H)
  • PCB MAX (mm): 120(W) x 170(L)
  • PCB MIN (mm): 45(W)
  • Storage slot: 100 Glass pieces
  • Pitch (mm): 5
  • Material: ABS / AL
  • Weight (kg): N/A

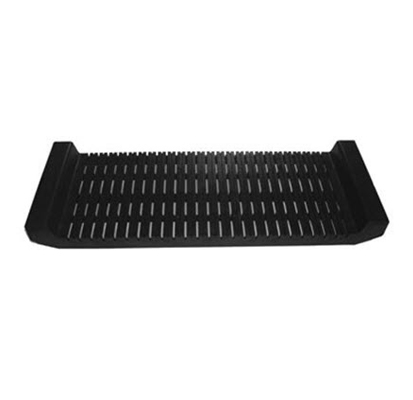

Conductive PCB Rack


  • Size (mm): 180(W) x 485(L) x 48(H)
  • PCB MAX (mm): N/A
  • PCB MIN (mm): N/A
  • Storage slot: N/A
  • Pitch (mm): N/A
  • Materiel: N/A
  • Weight (kg): N/A
