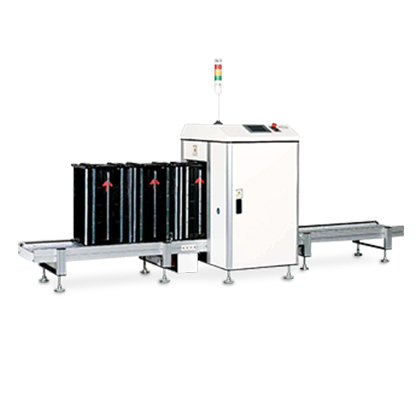

Magazine Auto-Width Adjustment Conveyor
This unit is used to adjust the guide of movable rail by Off-line magazine insertion. The conveyor's automated mechanism allows the magazine to go in any width and come out a desired width.
Categories Automation, PCB Handling Conveyors
Tag PCB Handling Conveyors
Features
- Magazine Adjustment range : 50mm ~ 250mm
- Perfect fixing with left/right 3 Magazines
- Precise control by 2 axis servo motor
- Precise control by 2 axis servo motor
- Wrench exchange type for assembly/disassembly of blot
- Touch Panel
Options
- Corresponding to AGV (communication)
Media
Conveyor Models
KMAWA-900S
Specifications
- Max. PCB (L * W): 330 x 250
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 3100 x 1020 x 1125
- Power: 3.0 kVA
- Air: 4~6 kgf / cm2
- Weight: 551 lbs
KMAWA-900L
Specifications
- Max. PCB (L * W): 530 x 380
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 4360 x 1160 x 1125
- Power: 3.0 kVA
- Air: 4~6 kgf / cm2
- Weight: 63 lbs
KMAWA-900XX
Specifications
- Max. PCB (L * W): 610 x 460
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 4955 x 1230 x 1125
- Power: 3.0 kVA
- Air: 4~6 kgf / cm2
- Weight: 771 lbs
KMAWA-900Y
Specifications
- Max. PCB (L * W): 440 x 330
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 3835 x 1100 x 1125
- Power: 3.0 kVA
- Air: 4~6 kgf / cm2
- Weight: 595 lbs
KMAWA-900X
Specifications
- Max. PCB (L * W): 530 x 460
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 4360 x 1230 x 1125
- Power: 3.0 kVA
- Air: 4~6 kgf / cm2
- Weight: 683 lbs
