Laser Marking Machine
PCB Laser Marking Machine is designed for bar codes marking, 2D codes and characters, graphics and other information on any kinds of printed circuit board. Integrated with high-performance CO2 / Fiber laser source, import high-pixel CCD camera and micron-level mobile module, PCB Laser Marking Series is competent to pre-marking automatic positioning and post-marking feedback reporting.
Features
- High-performance CO2 / Fiber laser has high-quality laser beam, small focusing spots and well-distributed power.
- The high-pixel CCD camera makes automatic positioning, identification and feedback reporting come true.
- Gantry structure and synchronous transmission guideways ensure the stable and precision performance.
- The function of automatic focusing and track width adjusting are designed to match up different production line.
Applications
- Large-area PCB online marking
Media
Laser Marking Machine Lineup

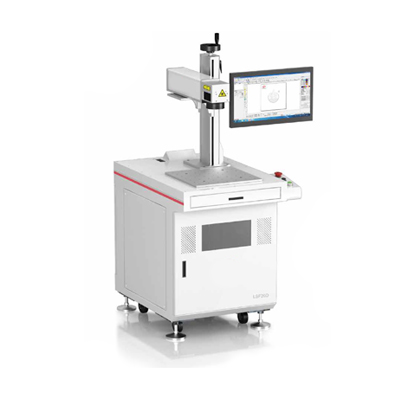

LSF Series
Q-Switch Pulse Fiber Marking Machine
Fiber series products adopt 1064nm wavelength laser, which are suitable for various metal materials such as iron, copper, aluminum, gold, silver, and some non-metallic materials such as PC, ABS, PVC, PC+ ABS. It’s widely used in 3C, auto parts, electronic components, integrated circuit (IC), electrical appliances, precise instruments, hardware products, building materials, glasses, watches, jewelry accessories, craft gifts and other industries.
Fiber series products adopt 1064nm wavelength laser, which are suitable for various metal materials such as iron, copper, aluminum, gold, silver, and some non-metallic materials such as PC, ABS, PVC, PC+ ABS. It’s widely used in 3C, auto parts, electronic components, integrated circuit (IC), electrical appliances, precise instruments, hardware products, building materials, glasses, watches, jewelry accessories, craft gifts and other industries.
- Integrated overall design, compact structure, and stable performance
- Optional configurations meet the marking needs of different products
- Fine marking of complex graphics
- Independent research and development, rich customization

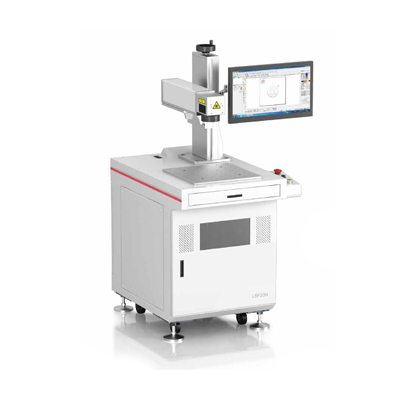

LSF Series
Narrow Pulse Fiber Marking Machine
LSF series fiber marking series products are suitable for various types of metal materials such as iron, copper, aluminum, metal, silver, etc, and parts of non-metal materials like PC, A BS, PVC, and PC + A BS. Widely used in 3 C, auto parts, electronic components, integrated circuits {IC), instrumentation, electrical appliances, medical devices, hardware, building materials, glasses and clocks, ornaments, Art & Craft.
LSF series fiber marking series products are suitable for various types of metal materials such as iron, copper, aluminum, metal, silver, etc, and parts of non-metal materials like PC, A BS, PVC, and PC + A BS. Widely used in 3 C, auto parts, electronic components, integrated circuits {IC), instrumentation, electrical appliances, medical devices, hardware, building materials, glasses and clocks, ornaments, Art & Craft.
- Wide range of materials with advanced adjustable pulse-width
- Suitable for various consumer electronic products and medical devices
- Marks anodized aluminum, keyboard, transparent keys, and chargers
- Suitable for various types of medical devices

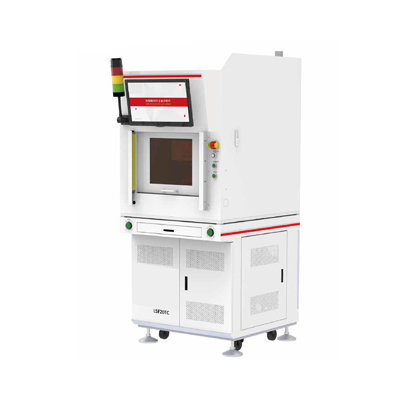

Small Metal Parts
Laser Marking Machine
Machine uses for metal part laser marking with high precision requirement, deburring, deoxidizing layer and remove surface silver layer of ceramic filter.
Machine uses for metal part laser marking with high precision requirement, deburring, deoxidizing layer and remove surface silver layer of ceramic filter.
- Precise CCD positioning, high precision processing
- Customized fixture with motion platform
- High standard in safety and operator protection

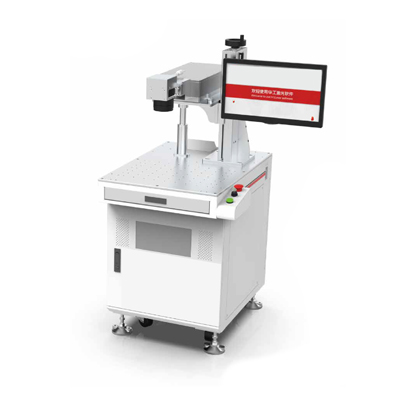

LSU Series
Laser Marking Machine
LSU series laser marking machine equip with 355nm wavelength laser source which suitable for plastic material (ABS, PC, PVC, HIPC) leather, gold, glass, LED, ceramic silicon, IC and gem stone to laser marking. Applications cover 3C, auto, electro pneumatic meter, white goods, integrated circuits, medical devices, tools, food and medicine.
LSU series laser marking machine equip with 355nm wavelength laser source which suitable for plastic material (ABS, PC, PVC, HIPC) leather, gold, glass, LED, ceramic silicon, IC and gem stone to laser marking. Applications cover 3C, auto, electro pneumatic meter, white goods, integrated circuits, medical devices, tools, food and medicine.
- 355nn wavelength UV
- Cold processing, minimum heat affect, no damage to materials
- Tiny focus laser spot, high quality laser beam, able to achieve high precision marking at a high speed
- Laser source adopts intra cavity frequency doubling technology + TEC cooling technology

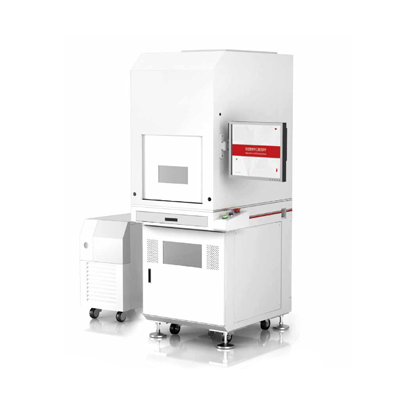

LSG Series
YAG Laser Marking Machine
LSG series laser marking machine is equipped with a 532nm wavelength laser source which is suitable for plastic material, leather, glass, acrylic, and IC. Applications include 3C and integrated circuits laser marking.
LSG series laser marking machine is equipped with a 532nm wavelength laser source which is suitable for plastic material, leather, glass, acrylic, and IC. Applications include 3C and integrated circuits laser marking.
- Good for integrated circuits
- Leather
- Acrylic material

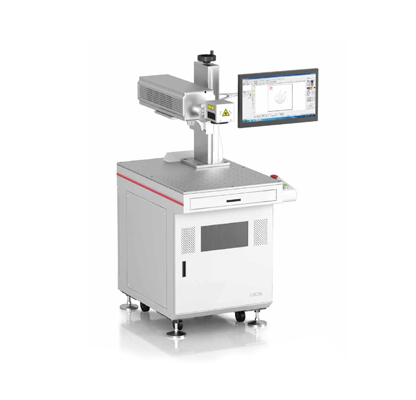

LSC Series
CO2 Laser Marking Machine
LSC series laser marking machine suitable for plastic material, rubber, resin, ceramics, coating film, stone leather , acrylic , wood, paper and cloth IC to laser marking , cutting and drilling. Applications covers clothing, leather products, electronic components, food package industrial and other fields.
LSC series laser marking machine suitable for plastic material, rubber, resin, ceramics, coating film, stone leather , acrylic , wood, paper and cloth IC to laser marking , cutting and drilling. Applications covers clothing, leather products, electronic components, food package industrial and other fields.
- High quality Co2 laser source
- Top quality optical components, great optical model
- Long-term continuous running, with stable performance system
- Integrated cabinet, compact structure, stable performance

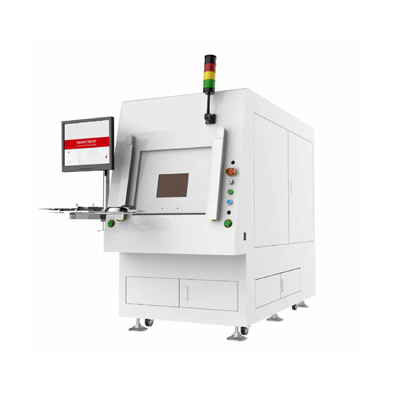

Picosecond
Processing Machine
Picosecond processing equipment is the characteristic product specially developed by HG Laser for the demand of low power picosecond level, high precision and fast Laser processing. It should be widely used for thin material, ceramic drilling line, glass ink removal, coating removal, dazzling color marking, micro and hidden 2d code marking, thin film material fine line cutting.
Picosecond processing equipment is the characteristic product specially developed by HG Laser for the demand of low power picosecond level, high precision and fast Laser processing. It should be widely used for thin material, ceramic drilling line, glass ink removal, coating removal, dazzling color marking, micro and hidden 2d code marking, thin film material fine line cutting.
- The structural design is compatible with more light source modules
- Marble structure optical platform, stable optical performance
- The structural design is compatible with more transmission mechanisms
- CCD positioning ensures processing accuracy
- Easy to disassemble and repair

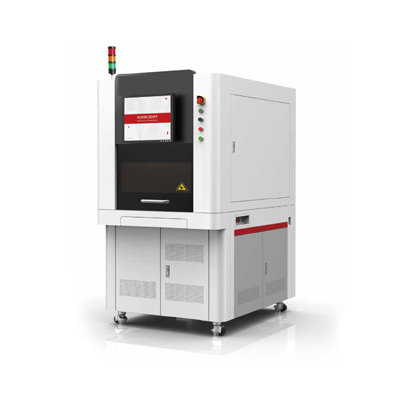

3D Curved Face
Processing Machine
This machine suitable for high precision laser marking of 3C, car, electric meter, white goods, integrated circuit, medical therapy instruments, metal tools, and other curved surface molders.
This machine suitable for high precision laser marking of 3C, car, electric meter, white goods, integrated circuit, medical therapy instruments, metal tools, and other curved surface molders.
- High precision 3D scanner
- Capable to do laser marking on any curved surface workpiece
- Clean marking
- Optional auto focus, power rate feedback, 2D code reading, and visual operation functions

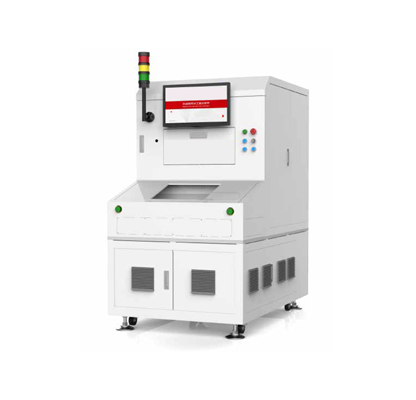

Double Working Stations
Laser Processing Machine
Double working stations laser processing machine adopt fiber or uv laser source, intergrated into automatic detection and identification CCD system , which can automatically read the document and laser marking, detect defects and remove NG products, compatible with five templates at the same time , fast switching , is the best choice for consumer electronics products.
Double working stations laser processing machine adopt fiber or uv laser source, intergrated into automatic detection and identification CCD system , which can automatically read the document and laser marking, detect defects and remove NG products, compatible with five templates at the same time , fast switching , is the best choice for consumer electronics products.
- Broad working range for higher efficiency
- Multiple CCD camera and light source in processing area
- Capable of OCR and double check functions
- Easy communication with production management system

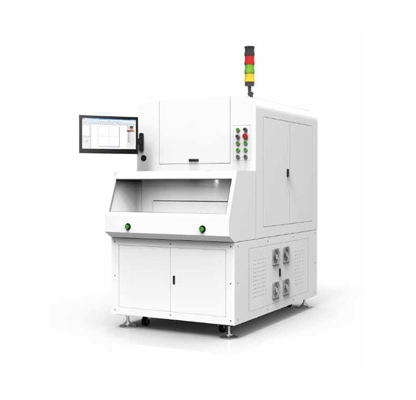

Double Head
Laser Processing Machine with Four Working Stations
Suitable for 2D code marking and surface coating removal on phone, pad, and other products.
Suitable for 2D code marking and surface coating removal on phone, pad, and other products.
- Double laser head design for higher processing efficiency
- Can be equipped with rotary jigs and auto focusing system
- CDD crema system ensures processing accuracy
- Easy communication with production management system

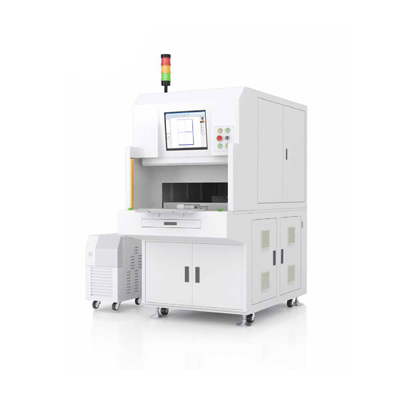

Wireless Charging Coil
Coating Removal / Shear Laser Processing Machine
Double station cutting and removing equipment is suitable for two processes of wirelessly charging coil removing and cutting.
Double station cutting and removing equipment is suitable for two processes of wirelessly charging coil removing and cutting.
- Environment-friendly remove process, avoid secondary pollution
- No damage on bas material with high precision
- No consumption, low machine use cost
- Rotary double head with double working station structure with high processing efficiency
- Equipped with visual perception system and CCD positioning

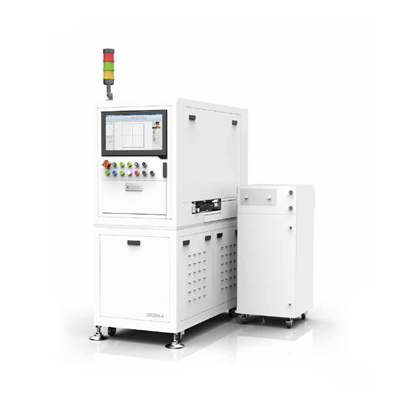

Thin Material
Laser Processing Machine
This product dedicated design for thin material product laser on line mark, able to adjust inner conveyor width automatically to match customer conveyor and product or fixture. Integrated with CCD inspection system for precision positioning and laser marking. This product is suitable for 2D code, Character, logo, and product model info.
This product dedicated design for thin material product laser on line mark, able to adjust inner conveyor width automatically to match customer conveyor and product or fixture. Integrated with CCD inspection system for precision positioning and laser marking. This product is suitable for 2D code, Character, logo, and product model info.
- Online 2D code laser marking
- Able to integrate with UC, IR, CO2, and fiber laser source
- Barcode scanner reads code and automatically uploads to system database
- Positioning by CCD vision system
- Up to 0.05mm, UPH 1200pcs
- Able to support small size 2D code marking,
- Minimum code mark 0.2*0.2mm

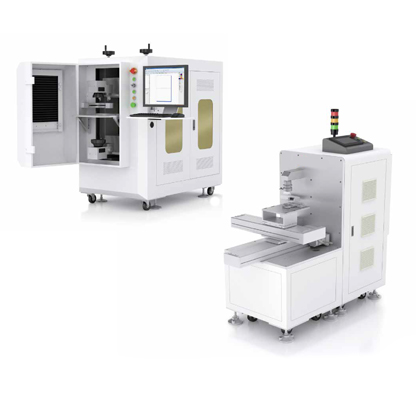

Laser Stripping
Laser Stripping Machine is use laser high power density, high frequency features, shoot laser on the require stripping area and works on the material, with the high energy in the working area, remove the surround material, like the outer material of cable, painting of metal
- No pollution, eco-friendly
- High Efficiency
- Long lifetime, low running cost
- Easy operation
- Low noise

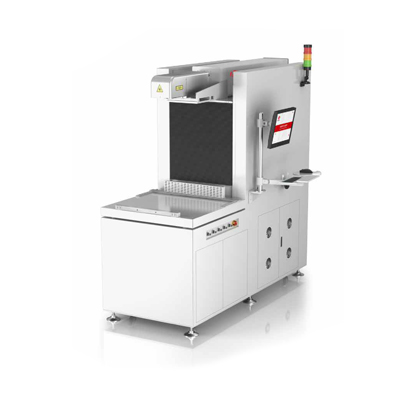

Large Size
Processing Machine
Suitable for larger sizes laser markings, cuttings, carvings, painting process, and material surface micro-heat processing applications. High precision 3D scanner with control software system.
Suitable for larger sizes laser markings, cuttings, carvings, painting process, and material surface micro-heat processing applications. High precision 3D scanner with control software system.
- Suitable for leather, paper, wooden, stone
- Large area process with high efficiency
- High laser beam quality
- No deformation or burns on material
- Easy operation

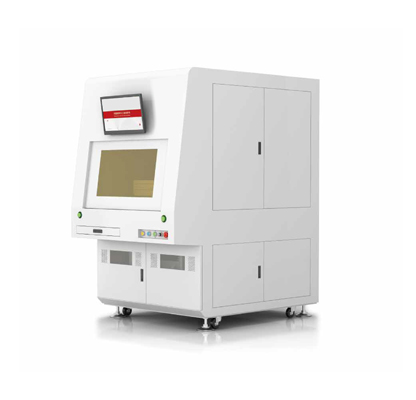

Non-metal
Material Process Equipment
Non-metal material process equipment that is able to integrate with different laser source, motion, and vision system. Capable of applications like plastic material laser marking, piercing, film cutting, and burr removing.
Non-metal material process equipment that is able to integrate with different laser source, motion, and vision system. Capable of applications like plastic material laser marking, piercing, film cutting, and burr removing.
- High precision piercing, smooth edge, and no burr
- Film high precision cut, no edge burn, no color change
- Vision inspection and positioning to guide laser path
- Able to integrate with film process machine for conveyor integration

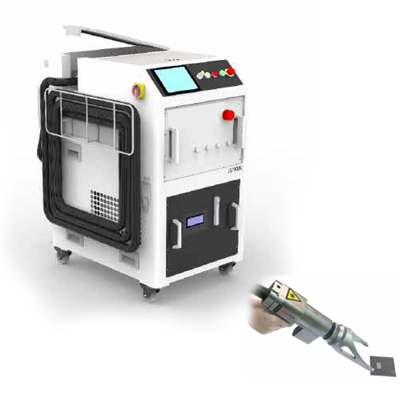

Laser Cleaning
Laser Cleaning Machine shoot laser on product surface, the material absorb laser, with the high power density, the surface material, like painting, and rust. This application widely use for metal/glass material surface cleaning.
- No pollution, eco-friendly
- Precision cleaning, cleans surface without damaging base material
- Handheld operation, with optional integration to robots
- Low noise
