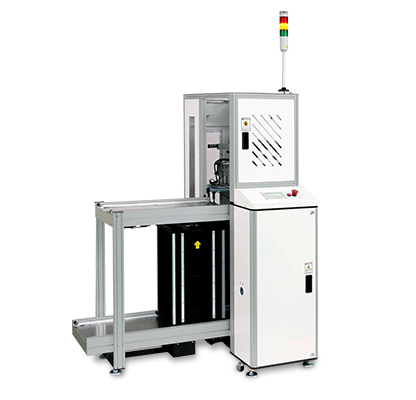

Integrated Magazine & Vacuum Loader
This unit used to load both bare board and the PCB from Magazine to next process in the production line.
Features
- Bare board loading at rear position: reduced length of production line
- SMEMA Interface
- Stable design
- Perfect fixing with 4 Magazine fixture
- Easy operation by user-friendly operation panel
- Decreased noise while Magazine moves up/down
- PCB pushing guide
- Buzzer, LED tower light
Options
- Acceptance for 2 different sizes of Magazine
- Touch screen
- High speed magazine change-over time
- Aux. buffer Conveyor
Conveyor Models
KVML-900S
Specifications
- Max. PCB (L * W): 330 x 250
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 1340 x 1075 x 1650
- Power: 800 kVA
- Air: 4~6 kgf / cm2
- Weight: 771 lbs
KVML-900L
Specifications
- Max. PCB (L * W): 530 x 380
- Min. PCB (L * W): 50 x 60
- Dimension (L * W * H): 1940 x 1325 x 1650
- Power: 800 kVA
- Air: 4~6 kgf / cm2
- Weight: 859 lbs
KVML-900XX
Specifications
- Max. PCB (L * W): 610 x 460
- Min. PCB (L * W): 50 x 100
- Dimension (L * W * H): 2180 x 1495 x 1650
- Power: 800 kVA
- Air: 4~6 kgf / cm2
- Weight: 925 lbs
KVML-900Y
Specifications
- Max. PCB (L * W): 440 x 330
- Min. PCB (L * W): 50 x 65
- Dimension (L * W * H): 1670 x 1235 x 1650
- Power: 800 kVA
- Air: 4~6 kgf / cm2
- Weight: 815 lbs
KVML-900X
Specifications
- Max. PCB (L * W): 530 x 460
- Min. PCB (L * W): 50 x 100
- Dimension (L * W * H): 1940 x 1495 x 1650
- Power: 800 kVA
- Air: 4~6 kgf / cm2
- Weight: 903 lbs
