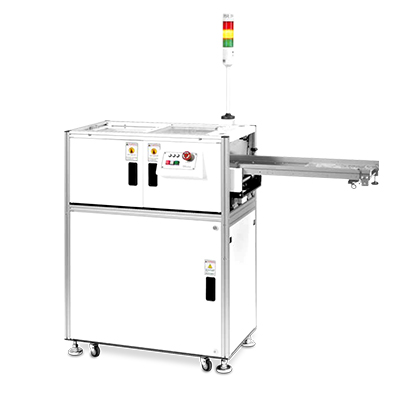

Gateway Telescopic Conveyor
This unit is used to make passage for operator in the production line.
Categories Automation, PCB Handling Conveyors
Tag PCB Handling Conveyors
Features
- SMEMA Interface
- A stable design with safety sensor and switch
- ESD Cover safe from dust
- Normally open type
- Buzzer, LED tower light
Options
- Touch screen
- Auto width adjustment

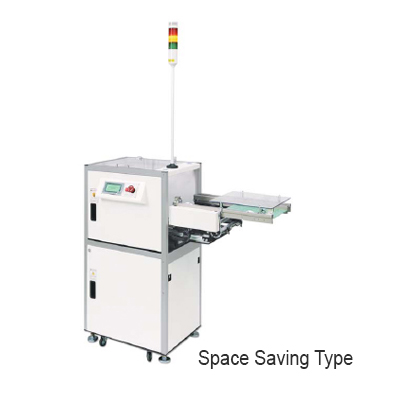

- Space economized type by 2 platform sliding
- Speed Control
- Holds 2 PCB’s
- Normally closed type (keeps in-line status always)
Media
Media
KGC-500S
Specifications
- Max. PCB (L * W): 330 x 250
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 1400 (800 + 600) x 510 x 1000
- Power: 450 VA
- Air: 4~6 kgf / cm2
- Weight: 286 lbs
KGC-500L
Specifications
- Max. PCB (L * W): 530 x 380
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 1400 (800 + 600) x 640 x 1000
- Power: 450 VA
- Air: 4~6 kgf / cm2
- Weight: 330 lbs
KGC-500XX
Specifications
- Max. PCB (L * W): 610 x 460
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 1400 (800 + 600) x 770 x 1000
- Power: 450 VA
- Air: 4~6 kgf / cm2
- Weight: 374 lbs
KGC-500Y
Specifications
- Max. PCB (L * W): 440 x 330
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 1400 (800 + 600) x 590 x 1000
- Power: 450 VA
- Air: 4~6 kgf / cm2
- Weight: 308 lbs
KGC-500X
Specifications
- Max. PCB (L * W): 530 x 460
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 1400 (800 + 600) x 710 x 1000
- Power: 450 VA
- Air: 4~6 kgf / cm2
- Weight: 352 lbs
