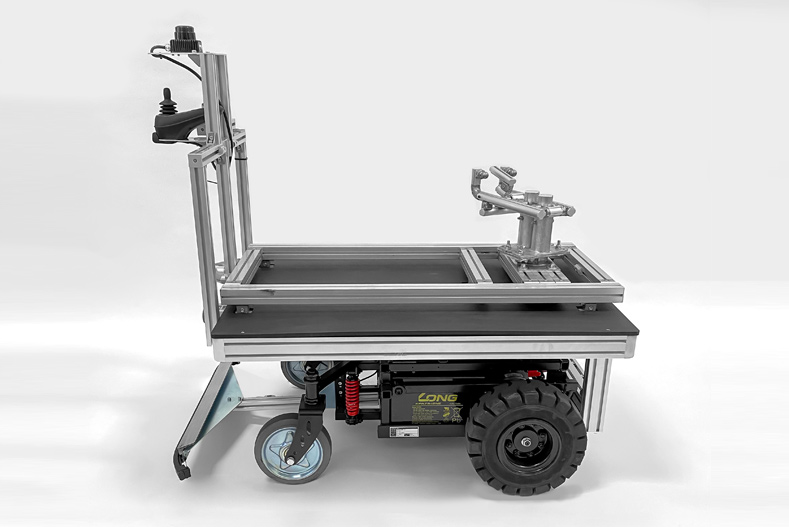

Follow Me Robotic Cart

The Follow Me Robotic cart AMR is a versatile mobile robotic platform that can be used for indoor and outdoor applications. Dynamic functions such as Follow Me, Line Trace, or Memory Trace make this robot ideal for use in difficult situations where precision and accuracy are required. The AMR Follow Me cart will follow you wherever you go!

Categories ,

Features

  • Autonomous Memory Trace
    • Press button to start autonomous route playback
    • Up to 5 route memory and multiple stops can be set in the middle of route
    • Suitable for routine task uses with fixed destinations
  • Collaborative Follow Me
    • Stand in front of the cart and press the button
    • No tracker device needed
    • Obstacle avoidance feature
    • Suitable for non-routine task
  • Simple implementation
  • High capacity towing
  • Works indoor and outdoor
  • Fast deployment
  • Plug and play solution

Applications

  • Day/night
  • Slope/step
  • Light rain
  • Gravel
  • Grating/gap
  • Water puddle

Media

Robotic Cart Lineup

Basic (RMS-10B2) Cart

  • Robot dimension (mm): 600W x 950L x 990H
  • Load surface (mm): 650W x 750L
  • Platform height (mm): 455
  • Payload (kg): 120
  • Towing capacity ※1 (kg): 300
  • Max speed (km/h): 7.5
  • Minimum radius of rotation: ~0.72m
  • Max travel distance per full charge ※2 (km/h): 20
  • Max slope gradient (full load): 6 degrees
  • Max step ※3 (cm): 3
  • Follow Me: YES
  • Line-Trace: NO
  • Memory Trace: YES
  • No. of memory trace routes: 5
  • Highway: NO
  • Detection range: Max 30m, Class 1 safety, Height 33cm
  • Battery and charging: Lead acid, 24V, 34Ah, full charge 8 hours
  • IP class: IPX2
  • Safety components: Emergency stop button (front), bumper sensor alarm system (sound), indicator lights (add-on)
  • Wi-fi communication: NO
  • I/O terminal: NO

Standard (RMS-10E2) Cart

  • Robot dimension (mm): 600W x 950L x 990H
  • Load surface (mm): 650W x 750L
  • Platform height (mm): 455
  • Payload (kg): 120
  • Towing capacity ※1 (kg): 300
  • Max speed (km/h): 7.5
  • Minimum radius of rotation: ~0.72m
  • Max travel distance per full charge ※2 (km/h): 20
  • Max slope gradient (full load): 6 degrees
  • Max step ※3 (cm): 3
  • Follow Me: YES
  • Line-Trace: YES
  • Memory Trace: YES (add-on)
  • No. of memory trace routes: >5
  • Highway: YES (add-on)
  • Detection range: Max 30m, Class 1 safety, Height 33cm
  • Battery and charging: Lead acid, 24V, 34Ah, full charge 8 hours
  • IP class: IPX2
  • Safety components: Emergency stop button (front), bumper sensor alarm system (sound), indicator lights (add-on)
  • Wi-fi communication: YES
  • I/O terminal: YES

Giant (RMS-15E2) Cart

  • Robot dimension (mm): 700W x 1180L x 990H
  • Load surface (mm): 700W x 1000L
  • Platform height (mm): 455
  • Payload (kg): 300
  • Towing capacity ※1 (kg): 600
  • Max speed (km/h): 7.5
  • Minimum radius of rotation: ~1.0m
  • Max travel distance per full charge ※2 (km/h): 20
  • Max slope gradient (full load): 3 degrees
  • Max step ※3 (cm): 3
  • Follow Me: YES
  • Line-Trace: YES
  • Memory Trace: YES (add-on)
  • No. of memory trace routes: >5
  • Highway: YES (add-on)
  • Detection range: Max 30m, Class 1 safety, Height 35cm
  • Battery and charging: Lead acid, 24V, 72Ah, full charge 8 hours
  • IP class: IPX2
  • Safety components: Emergency stop button (front), bumper sensor alarm system (sound), indicator lights (add-on)
  • Wi-fi communication: YES
  • I/O terminal: YES
Disclaimers:
※1: Although the Robotic Cart has a traction force (N), it cannot guarantee the safety of the towed object and its surroundings. Since the maximum towing weight is determined by the relationship between the towed object and the floor surface/environment, sufficient safety verification is required in advance. Even within the range of tractive force (N), the mass of the towed object cannot be exceeded.
※2: May decrease due to ambient temperature, load, and battery deterioration over time. It is based on our test conditions.
※3: For towing operations and heavy load transportation, the maximum speed may be limited for safety reasons.
follow me robotic cart layout demonstration
