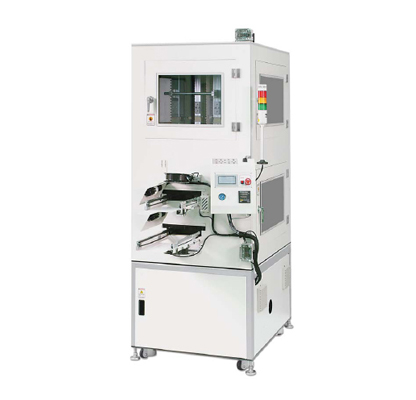

Curing Chain Buffer

This unit is located after conformal process and used to cure the boards.

Features

  • Adjustable temperature : ~ 100 °C
  • Stock of pitch : 19.05 (38.1) mm – Adjustable
  • Heating by Heat Pump
  • Acceptance of Pallet Jig

Options

  • Auto width adjustment

Conveyor Models

KCR-900S

Specifications

  • Max. PCB (L * W): 360 x 250
  • Min. PCB (L * W): 250 x 250
  • Dimension (L * W * H): 1580 x 850 x 2300
  • Power: 2.3 kVA
  • Air: 4~6 kgf / cm2
  • Weight: 881 lbs
