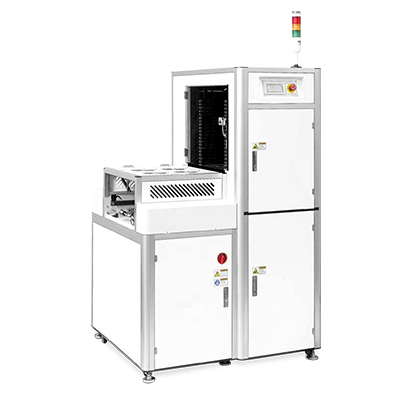

Cooling Buffer
This unit is used to cool the PCB after Reflow Oven the FIFO way.
Categories Automation, PCB Handling Conveyors
Tag PCB Handling Conveyors
Features
- SMEMA Interface
- Touch Screen
- Excellent cooling by using total 8 cooling fans
- Individual Belt running to each loading section
- PCB loading Quantity : 10 pcs (Pitch:31mm)
- PCB transfer in FIFO/LIFO Available
- Buzzer, LED tower light
Options
- Auto width adjustment
- 15 or 20 PCB loading capacity
- Air Conditioner
- Feedback of Board Quantity inside of Reflow Oven to the previous machine
Media
Conveyor Models
KBBC-700S
Specifications
- Max. PCB (L * W): 330 x 250
- Min. PCB (L * W): 50 x 50
- Dimension (L * W): 800 x 750 x 1500
- Power: 700 VA
- Air: 4~6 kgf / cm2
- Weight: 485 lbs
KBBC-700L
Specifications
- Max. PCB (L * W): 530 x 380
- Min. PCB (L * W): 50 x 50
- Dimension (L * W): 1220 x 880 x 1500
- Power: 700 VA
- Air: 4~6 kgf / cm2
- Weight: 529 lbs
KBBC-700XX
Specifications
- Max. PCB (L * W): 610 x 460
- Min. PCB (L * W): 50 x 50
- Dimension (L * W): 1220 x 1100 x 1500
- Power: 700 VA
- Air: 4~6 kgf / cm2
- Weight: 573 lbs
KBBC-700Y
Specifications
- Max. PCB (L * W): 440 x 330
- Min. PCB (L * W): 50 x 50
- Dimension (L * W): 1060 x 830 x 1500
- Power: 700 VA
- Air: 4~6 kgf / cm2
- Weight: 507 lbs
KBBC-700X
Specifications
- Max. PCB (L * W): 530 x 460
- Min. PCB (L * W): 50 x 50
- Dimension (L * W): 1220 x 950 x 1500
- Power: 700 VA
- Air: 4~6 kgf / cm2
- Weight: 551 lbs
