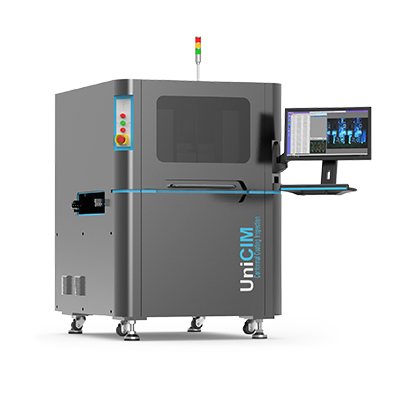

Conformal Coating Inspection System
Precisely measure coating thickness. Quickly and accurately detects conformal coating defects in the workplace such as No-Coating, Insufficient-Coating, and Bubble. Simultaneously identify the coating status of Non-Coating areas.
Features
- Quick and accurate inspection of coating areas with high-resolution camera and multi-light system
- Acquire precise measurements for coating thickness through its unique algorithm and OCT technology
- High-rigidity, low-gravity mechanism through vibration and structural analysis
- Improvement of process quality and yield through real-time monitoring system and in-depth analysis of inspection results
- Industry Standard 4.0 Smart Factory with UniSPC/MES based on deep learning
Applications
- Automobile electronics
- Mobile equipment
- Aviation
- Home appliances
- Maritime transport
- Medical equipment
Media
More Features

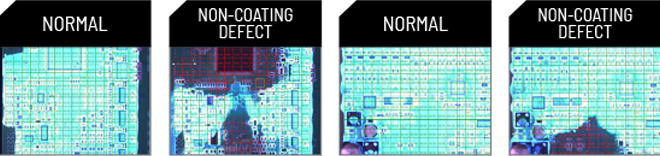

Coating Defect Inspection
Quickly and accurately detects conformal coating defects in the workplace such as No-Coating, Insufficient-Coating, and Bubble. Simultaneously identify the coating status of Non-Coating areas.

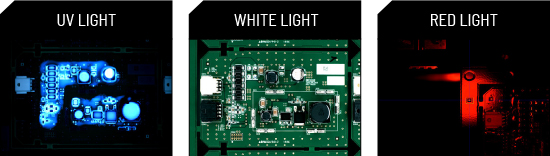

Multi-light System
This inspection system boasts a UV, White, and Red Multilight system that is optimized to obtain accurate test results. It also provides a flexible testing environment according to PCB conditions.
Thickness Measurement
The inspection system provides stable and accurate measurement solutions for conformal coating thickness with 3D measuring technology based on OCT (Optical Coherence Tomography).

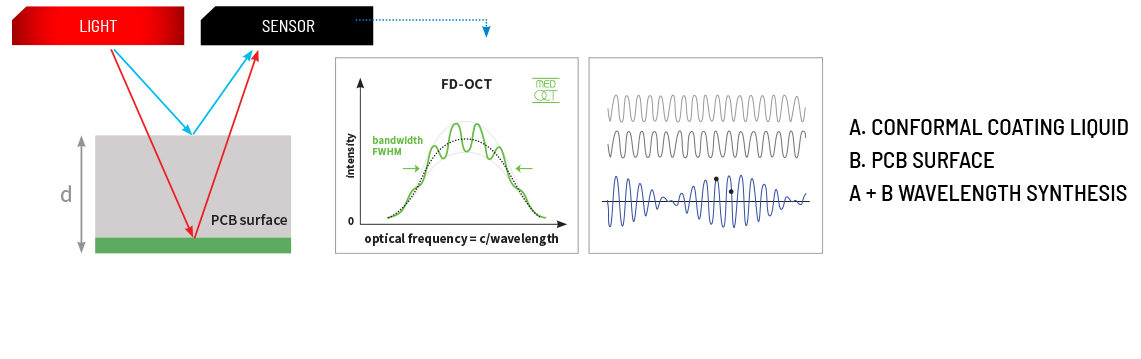

Optical Coherence Tomography
The system calculates thickness by measuring the distance of reflected light source. The lights reflected from the surface of a PCB (Red), and conformal coating layer (Blue), are measured in the spectrum of a complex form. Its unique algorithm analyzes this spectrum to calculate conformal coating thickness. The OCT technology measures the phase of light wave to obtain accurate data with excellent reproducibility.
Inspection Software
The User Interface is designed to be user-friendly and it provides convenient operation regardless of conformal coating types with easy-teaching, and auto-calibration.

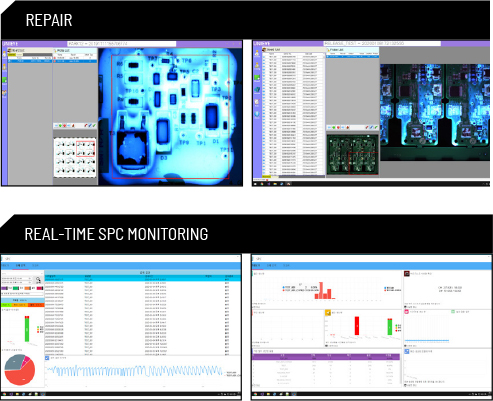

SPC System
Our system analyzes the stored inspection data and classifies defects by type, while it displays the result values in various statistics. It identifies problems in process by real-time SPC monitoring, reporting, production status, filtering, sorting, and analysis tools. Endless analytical solutions for efficient processes are available at your convenience!

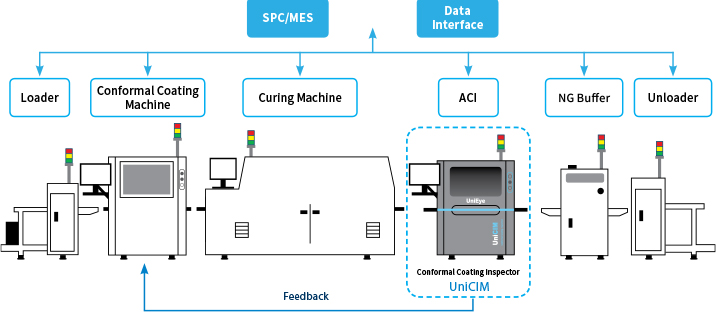

SMT Vision Solution
UniEye’s SMT Vision Solution provides effective management of the manufacturing processes through SPC (Statistical Process Control), data communication among multiple devices, remote monitoring/ control, and machine learning. Acquire 4.0 Smart Factory industry innovation technology now!
