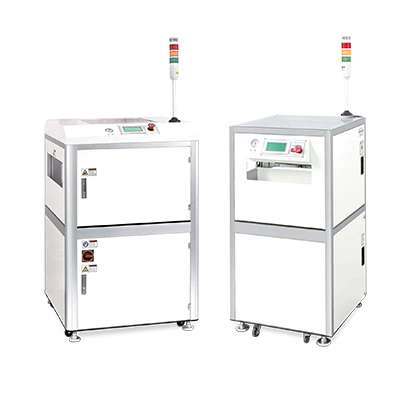

90° Turning Conveyor
This unit is used to cool the PCB after Reflow Oven in FIFO way.
Features
- SMEMA Interface
- Easy operation
- Buzzer, LED tower light
Options
- Touch screen
- Auto width adjustment
- Aux. buffer Conveyor
- Conveyor Speed Controller
- Multi turning function-Pass / 90˚ / 180˚ / 270˚
Media
Media
KTC-500S
Specifications
- Max. PCB (L * W): 330 x 250
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 555 x 565 x 1140
- Power: 60 VA
- Air: 4~6 kgf / cm2
- Weight: 330 lbs
KTC-500L
Specifications
- Max. PCB (L * W): 530 x 380
- Min. PCB (L * W): 50 x 50
- Dimension (L * W): 775 x 775 x 1140
- Power: 60 VA
- Air: 4~6 kgf / cm2
- Weight: 374 lbs
KTC-500XX
Specifications
- Max. PCB (L * W): 610 x 460
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 775 x 775 x 1140
- Power: 60 VA
- Air: 4~6 kgf / cm2
- Weight: 440 lbs
KTC-500Y
Specifications
- Max. PCB (L * W): 440 x 330
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 695 x 695 x 1140
- Power: 60 VA
- Air: 4~6 kgf / cm2
- Weight: 352 lbs
KTC-500X
Specifications
- Max. PCB (L * W): 530 x 460
- Min. PCB (L * W): 50 x 50
- Dimension (L * W * H): 775 x 775 x 1140
- Power: 60 VA
- Air: 4~6 kgf / cm2
- Weight: 396 lbs
