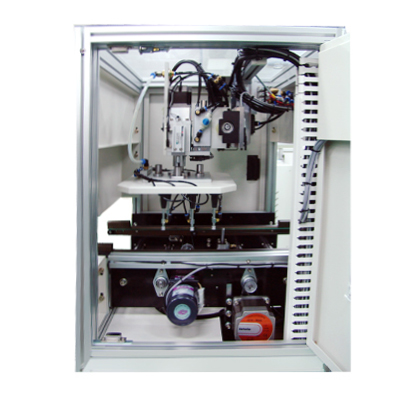

90° Pick N Turn Conveyor

This unit enables Reflow Oven to accommodate more PCB's inside by 90° turning.

Features

  • Vacuum Pick up
  • Automated width control before placing the PCB

Options

  • Auto-Width Adjustment
  • TSP HMI
  • Speed Control
  • Gripper Pick up
  • Offset positioning function on Y-axis
  • Lifting and Turning from the bottom of PCB

Media

Conveyor Models

KPRC-600S

Specifications

  • Max. PCB (L * W): 330 x 250
  • Min. PCB (L * W): 50 x 50
  • Dimension (L * W * H): 780 x 820 x 1500
  • Power: 60 VA
  • Air: 4~6 kgf / cm2
  • Weight: 396 lbs
KPRC-600L

Specifications

  • Max. PCB (L * W): 530 x 380
  • Min. PCB (L * W): 50 x 50
  • Dimension (L * W * H): 1000 x 1040 x 1500
  • Power: 60 VA
  • Air: 4~6 kgf / cm2
  • Weight: 485 lbs
KPRC-600XX

Specifications

  • Max. PCB (L * W): 610 x 460
  • Min. PCB (L * W): 50 x 50
  • Dimension (L * W * H): 1100 x 1200 x 1500
  • Power: 60 VA
  • Air: 4~6 kgf / cm2
  • Weight: 573 lbs
KPRC-600Y

Specifications

  • Max. PCB (L * W): 440 x 330
  • Min. PCB (L * W): 50 x 50
  • Dimension (L * W): 800 x 940 x 1500
  • Power: 60 VA
  • Air: 4~6 kgf / cm2
  • Weight: 440 lbs
KPRC-600X

Specifications

  • Max. PCB (L * W): 530 x 460
  • Min. PCB (L * W): 50 x 50
  • Dimension (L * W * H): 1000 x 1040 x 1500
  • Power: 60 VA
  • Air: 4~6 kgf / cm2
  • Weight: 485 lbs
